Roller chains with straight link plates are used in pallet transport, small diameter rollers carry large loads during transport. Conveyor chains are generally used as the load needs to be carried in short distances. The size of the load is generally small enough to carry on belts. The chain passes over rollers mounted on a spindle, which rotate freely about their perpendicular axes. The plates move freely along their length and are held against tension by special springs. Keep on reading to learn more about the conveyor chains with straight plates now!

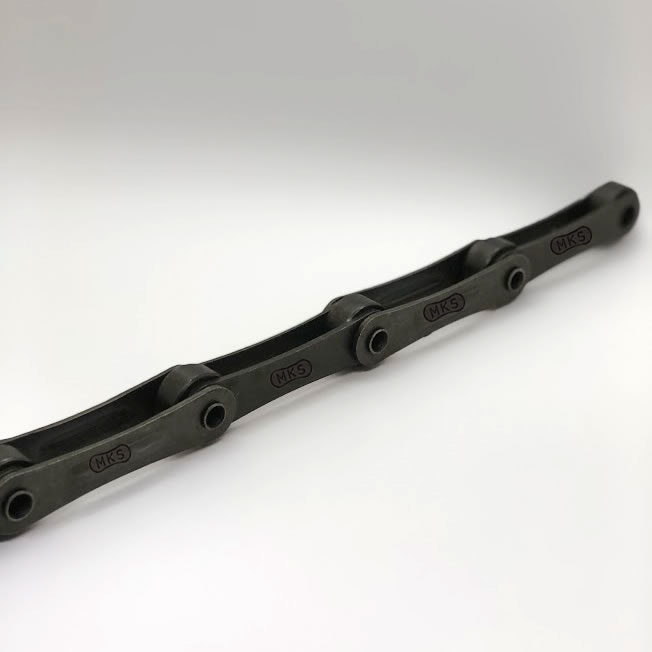

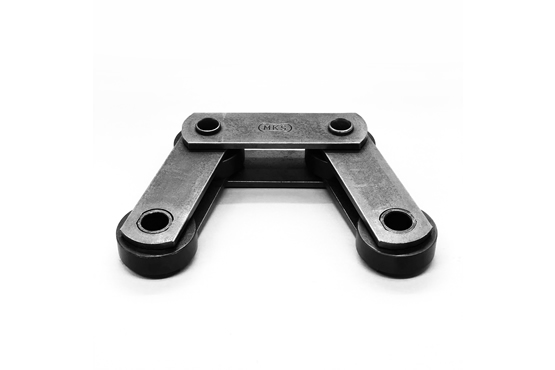

What is a conveyor chain with straight plates?
The roller chain with straight plates is a type of conveyor chain that uses flat plates to transfer the load. Conveyor chains offer many advantages just because they can be adjusted quickly and easily. This allows the operator to switch to different loads without changing the spindles and springs. It also retains its efficiency over long periods without wearing out or becoming damaged by dirt or other debris on the ground below it.
Roller chains with straight plates are used in pallet transport, small diameter rollers carry large loads during transport. Roller chains with straight plates have a high load-carrying capacity and can carry loads of up to 90% of their own weight. They are also highly resistant to impact and abrasive forces, meaning that they will endure even in harsh conditions.
Production stages of conveyor chains with straight plates can be different. High tensile strength and low elongation is just a couple of properties that our high quality chains have. This ensures that we are able to apply 40% higher breaking strength to our chains than other manufacturers, while still maintaining an extremely low elongation. This will make it possible for the chains to not wear out easily, since the first few thousand runs won’t require that much lubrication.
How to determine the right conveyor chain with straight plates for a conveyor system
Conveyor systems are used to transport materials, and they require chains to move the material through a system. They also use chains to transport objects over long distances If you want the best decision for your application, first you must know the basics.
A conveyor chain is an external link between two or more points in order to transmit force over a distance. Continuous and discontinuous chains are the two different types of these chains. Continuous chains have no breaks or gaps in them, while discontinuous chains do have gaps and breaks in them. When choosing a chain for your conveyor system, it’s important that you consider both factors: continuous versus discontinuous, as well as what kind of movement you’ll be using this chain for (for example: transporting material and/or transporting objects).
There are a number of factors to consider when choosing a roller chain with straight plates.
To determine the right conveyor chain with straight plates, you need to collect as much data as possible, in particular:
– Calculate the forces exerted on the chain.
– Choose the chain according to its working mode and the result of the calculations according to one or more of the following criteria:
– Do the calculations again, introducing the weight of the selected chain if this weight is significantly different from the weight estimated for the first calculations.
– Decide on technical details for making installation, referring to recommendations, and making sure that all working conditions initially stipulated have not changed to such an extent they put calculations into question.
Our top-quality conveyor chains with straight plates are designed to provide excellent traction and wear resistance, which makes them ideal for heavy-duty applications such as pallet trucks. Durable conveyor chains with straight plates for industrial use and their low profile allow them to fit in confined spaces, while their smooth surfaces reduce friction and noise.
Contact us or examine the “MAKELSAN CUSTOM MADE CHAINS CATALOG” for more detailed information about the conveyor chains with straight plates that we manufacture!
In the material-handling industry, the use of conveyor chains and straight plates is common to transport materials from one location to another. This can be a common sight in warehouse technology, as well. The main advantage of using this system is how flexible it is. It can be adjusted in length or width to suit your needs and preferences. You may want to change the number of lanes, or even the type of material that’s being transported. Another benefit of using conveyor chains with straight plates is that they’re easier to maintain than other types of machinery.
